(Updated December 11, 2025) For an investor, the electrical system is the unseen risk that can destroy a property. Old mobile homes often contain two major safety liabilities: undersized panels (60 or 100 Amp) that cannot handle modern appliances or HVAC units, and outdated, dangerous aluminum wiring.
A full electrical panel upgrade or aluminum wiring remediation is a substantial, non-negotiable expense, often costing between $2,500 and $6,500. This is not a cosmetic upgrade; it is a critical safety and insurance requirement. This guide breaks down the true cost of upgrading to a safe, modern 200-Amp system and the absolute necessity of remediating aluminum wiring.
Table of Contents
Video Guide Overview
Affiliate Disclosure: This guide contains affiliate links to specialized electrical components and smart home accessories used for high-ROI mobile home renovations. If you purchase through these links, Mobile Home Friend may earn a small commission, at no extra cost to you.
The Short Answer: Electrical Upgrade Costs (2025 Estimates)
The cost is heavily labor-dependent and varies based on whether you only replace the panel or must address the old wiring throughout the home.
| Scope of Work | Average Installed Cost Range (Pro) | Investor Directive |
|---|---|---|
| Panel Upgrade Only (100A to 200A) | $2,000 – $4,500 | Mandatory for new HVAC, tankless water heaters. |
| Full Aluminum Wiring Remediation | $3,500 – $7,000+ | Essential for insurance/lender approval; safety first. |
| New Sub-panel Installation | $800 – $1,500 | Necessary for garage or large addition power supply. |
Rule of Thumb: Always upgrade to the maximum available capacity (200 Amps) when replacing the panel. The extra cost is negligible compared to the future capacity it provides.

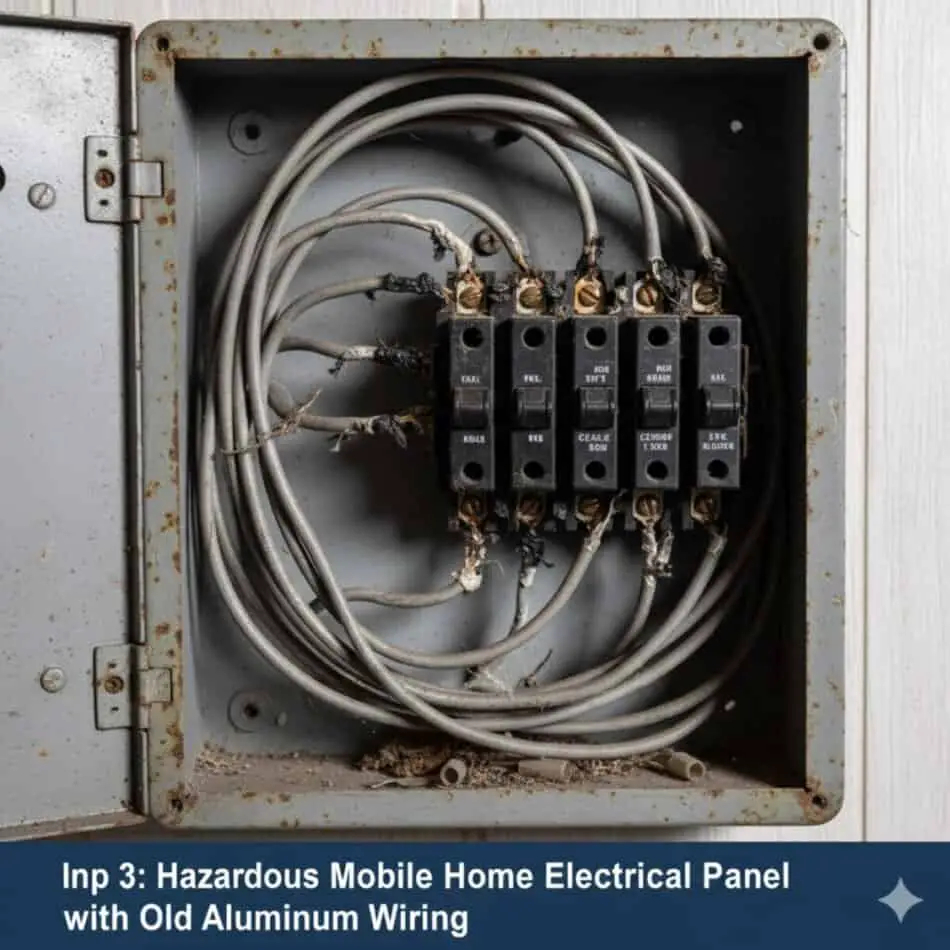

Aluminum Wiring: The Investor’s Biggest Safety Liability
If your mobile home was built between the mid-1960s and early 1970s, it likely contains single-strand aluminum branch wiring. This is a documented fire hazard and a massive liability.
The Core Problem (Thermal Expansion):
Aluminum wiring expands and contracts far more than copper when heated. Over time, this movement causes the connections at outlets, switches, and terminals to loosen. A loose connection creates resistance, which generates heat, leading to fire risk.
Remediation Options (Only Two Safe Choices):
- The CO/ALR Solution: This involves using specialized CO/ALR-rated switches and receptacles that are designed to handle aluminum wiring, but this only mitigates risk at the outlet, not the entire system.

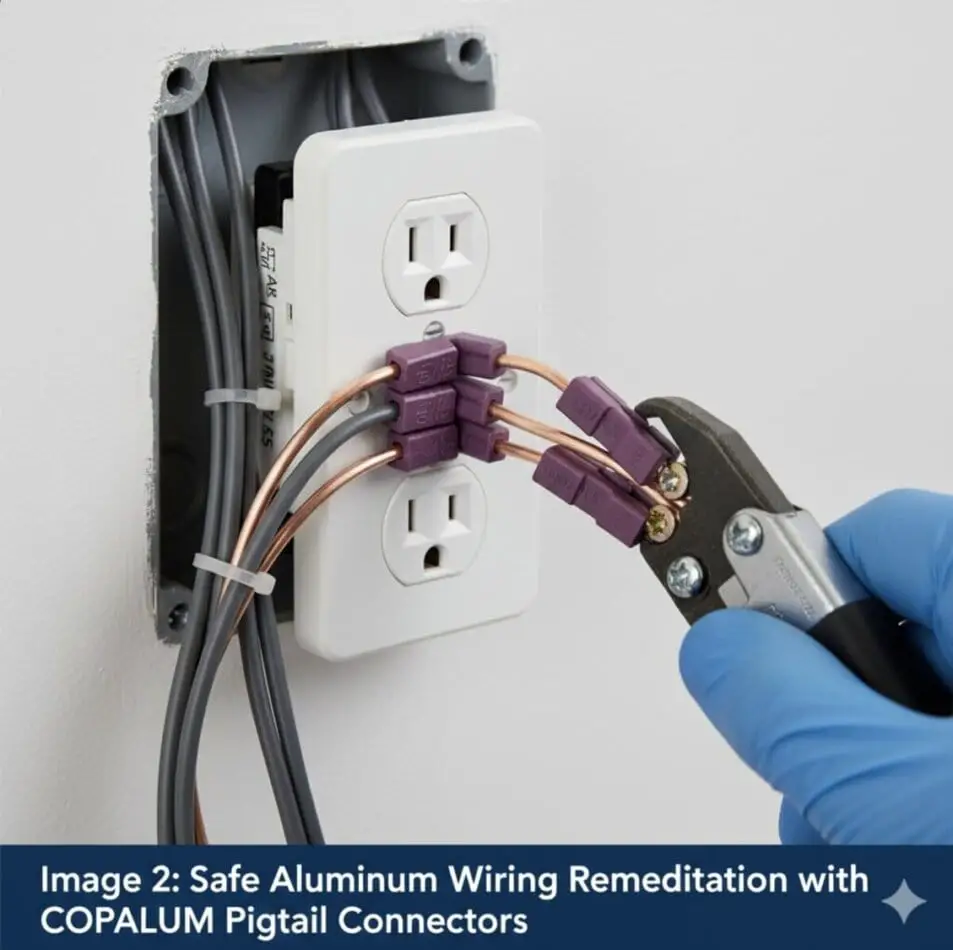

- Copper Pigtailing (Recommended): The safest, most widely accepted method is “pigtailing.” A certified electrician attaches a short piece of copper wire (a pigtail) to the end of the aluminum wire using a special splice connector (like a COPALUM crimp or specific twist-on connector). This creates a safer copper connection at the terminal.

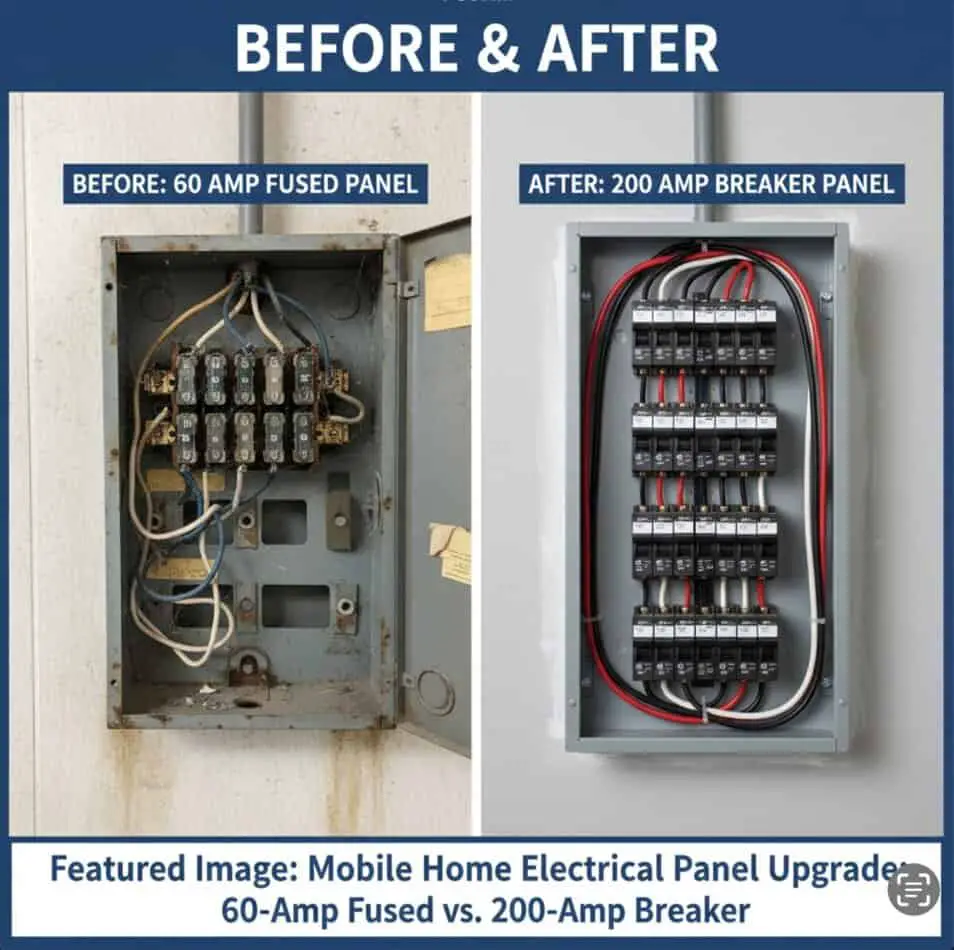

Panel Upgrade: Why 200 Amps is Mandatory
Many older mobile homes were built with 60-Amp or 100-Amp electrical service. This was sufficient when a home had basic resistance heat and a small window AC unit. It is insufficient for modern living.
- HVAC Requirements: A new high-efficiency heat pump or AC system often requires a dedicated 30-to-50 Amp circuit. Installing this system on a 100-Amp panel often leaves you with insufficient capacity for the rest of the house. For context on this large power draw, see: Mobile Home Heat Pump Installation Cost.
- Appliance Loads: Modern electric ranges, tankless water heaters, and EV chargers (a future consideration) require substantial power. Upgrading to 200 Amps future-proofs the home and prevents breakers from constantly tripping.
- Insurance and Resale: Insurance companies may refuse to underwrite homes with old, fused, or undersized panels. A visible, modern 200-Amp panel is a significant selling point that signals safety and quality to buyers.
If you are planning to install a new high-efficiency heat pump, confirm your existing panel size *before* getting the HVAC quote. A panel upgrade may need to be factored into the total cost.
The Non-Negotiable Step: Permits and Inspections
Electrical panel replacement and aluminum remediation are not DIY projects and require a permit from the local authority (city or county) and a final inspection.
- Permits Protect Your Investment: Pulling a permit ensures the work is done to current safety standards. This documentation is critical for proving to an insurance company or buyer that the electrical system is safe.
- Hiring Licensed Electricians: Only hire a licensed, bonded electrician who is familiar with manufactured housing codes. The electrician handles the permit application, the connection with the power company (utility disconnect), and the final inspection sign-off.
Warning: If a contractor offers to do a “quick fix” or panel swap without pulling a permit, fire them immediately. This work is illegal, uninsured, and worthless to a future buyer or insurance agent.
?️ Key Product Recommendations for Electrical Safety and Efficiency
These two products cover the most critical safety issue (aluminum wiring remediation) and the highest-ROI accessory upgrade (smart control).
✅ Option 1: Aluminum Wiring Remediation Connectors
The safest, long-term solution to aluminum wiring is copper pigtailing. While this must be done by a licensed electrician, these specialized, code-approved COPALUM-style Pigtail Connectors are required to make the safe connection between the old aluminum wire and the new copper wiring at all outlets and switches.
✅ Option 2: Modern Smart Thermostat
Once you have a modern, high-capacity electrical system and a new HVAC unit, a smart thermostat is the finishing touch. It drastically improves energy efficiency and is a massive, highly visible selling point for buyers. This Modern Smart Thermostat provides easy connectivity and energy savings documentation for the new homeowner.
Summary
Addressing the electrical system is the most important risk-mitigation step you can take. Always assume an old mobile home requires a 200-Amp panel upgrade. If the home has aluminum wiring, remediation is mandatory for safety and insurance purposes. This is an investment in safety and future capacity, not just aesthetics.
Related Questions
- Can I replace the breaker box myself? No. Replacing the main electrical panel (the breaker box) is dangerous and illegal to do without proper licensing and a permit. The work involves disconnecting and reconnecting the main utility line, which must be handled by a licensed professional.
- What is the difference between Fuses and Breakers? Older homes may have fuse boxes (using screw-in fuses). A fuse box is functionally obsolete and must be upgraded to a modern breaker panel. Fuses must be replaced after a trip, while circuit breakers can simply be reset.
Written by a real estate investor who has managed multiple full electrical system replacements in mobile homes, focusing on safety compliance and future-proofing the power grid.
